Description
Proto J10038L Includes

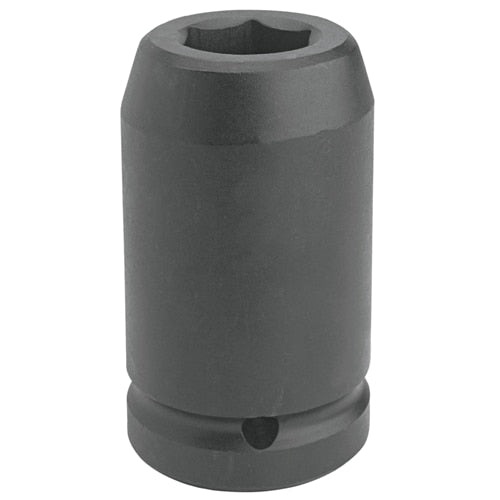

- (1) 1" DRIVE DEEP IMPACT SOCKET 2-3/8" - 6 POINT
Proto J10038L Features
- Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
Proto J10038L Specifications
SIZE | 2-3/8'' |
NUT END OUTSIDE DIAMETER | 3-1/2" |
DRIVE END OUTSIDE DIAMETER | 2-3/8" |
NUT DEPTH | 1-3/8'' |
BOLT CLEARANCE DEPTH | 3-1/8" |
OVERALL LENGTH | 4-3/4" |
WEIGHT | 8.06 lbs |
CRUSH RETAINING RING | JRR10034 |
O-RING | J10000R2 |
RETAINING PIN | J10000P2 |
DRIVE SIZE | 1" |
POINT SIZE | 6 |
FINISH | Black Oxide |
LENGTH TYPE | Deep |
UNIT OF MEASURE | Fractional |
